The Quantum Imager is the first true triple frequency range GPR system ever produced. The antenna emits three separate signals simultaneously, allowing the user to survey significantly greater depths with higher resolution than any other locating technology without sacrificing middle frequencies which are ideal for locating targets like buried utilities. Stepped ultra wideband pulses combine the advantages of pulse radar and stepped frequency radar for unsurpassed resolution and depth. New direct RF sampling technology creates clearer, easier to understand images than previously possible with older radar technologies. All these components of the quantum imaging method work together to make locating easier while providing superior results.

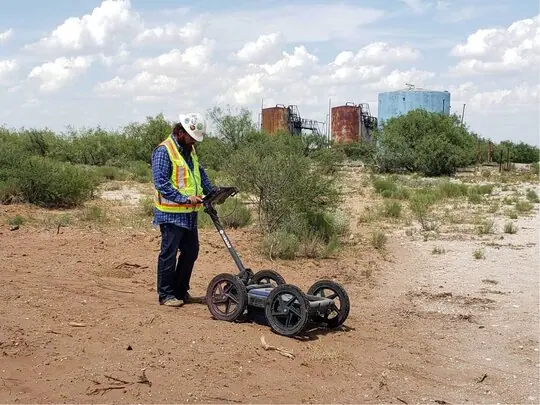

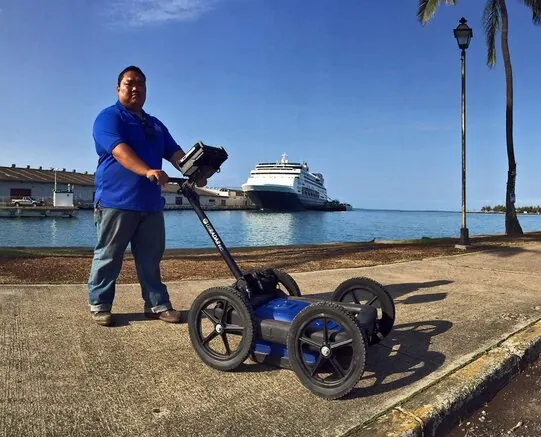

Worker Using GPR Equipment

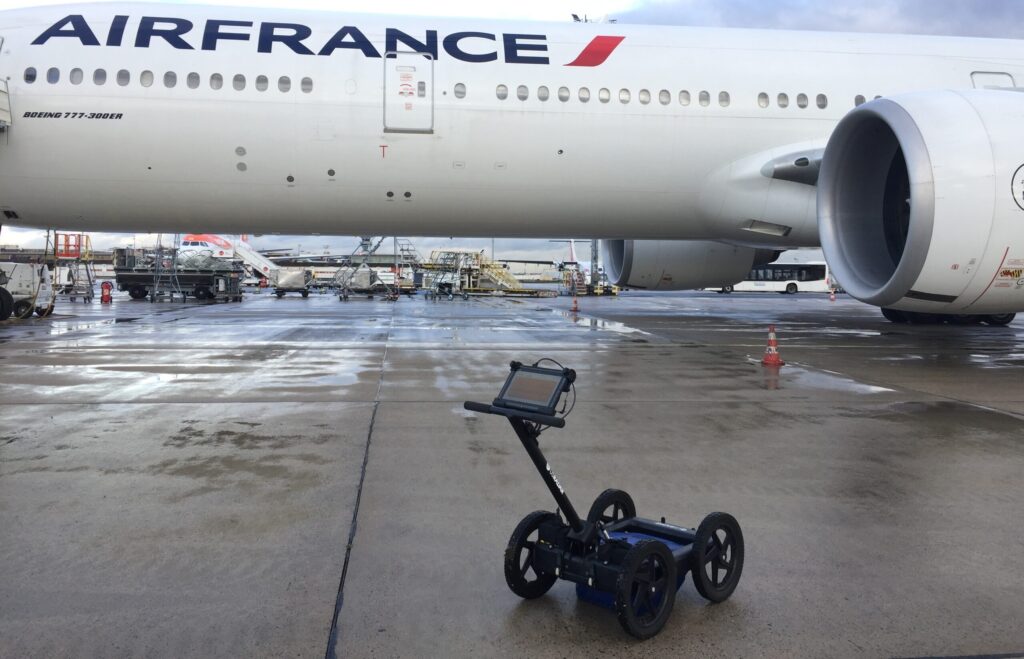

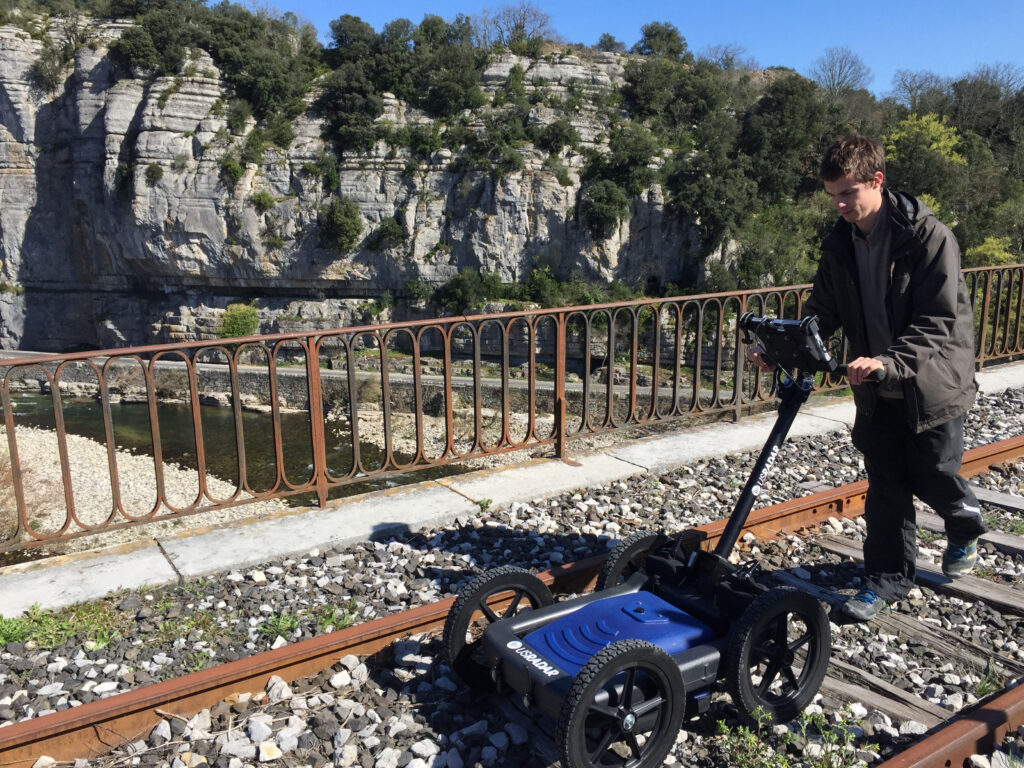

Quantum Imaging Applications

With greater depth and resolution than any other locating technology, the Quantum Imager can be used for anything from fiber optic analysis to utilities up to 30′(9m)+ deep and everything in between.

Patents Pending.

The Quantum Imager offers drastically more depth as well as higher resolution than any other imaging technology on the market. This is because of the narrow frequency range of dual frequency systems. Dual frequency systems also miss the middle frequencies ideal for utility locating.

Featured Quantum Imaging Hardware Technologies

  • Stepped Pulse Multi-Frequency GPR
  • SmartGain2
  • Folding Rough Terrain Cart
  • Self-Calibrating

Featured Quantum Imaging Software Technologies

  • SmartStack
  • StreetSmart Real-Time Processing
  • Auto Config
  • Depth Calibration
GPRover Tablet

Durable, Glare-Resistant Tablet Interface

Daylight readable, weatherproof Getac tablet interface

High performance CPU enables real-time data processing

Built-in 3D view capability

WiFi supported

USB, Ethernet, HDMI and Audio ports

Easy Storage

Folding cart handle and easy mount for easy storage

Long Life Battery Packs

Each battery lasts a total runtime of 8 hours each

Battery packs have lifespan of several years

Airless, Solid Tires

Airless, solid tires that cannot go flat

Require no maintenance

Stepped Pulse Triple Frequency Antenna

Triple frequency antenna means three scans in one

Sloped antenna design easily glides over obstacles

Optional GPS integration

Optional GPS Integration

Optional GPS Pole mount

Enables GPS to be centered over antenna

Integrates with most high-end GIS and RTK units

Optional integration with Google Earth

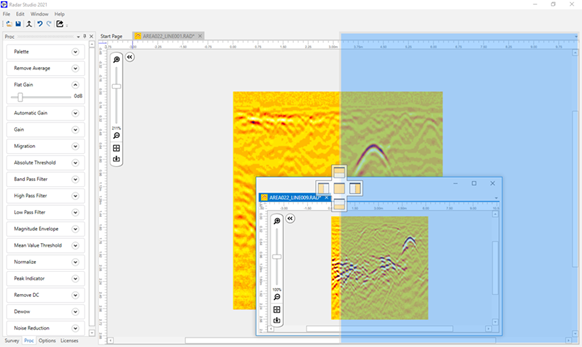

Acquisition Software

Easy to use out of the box

Perfect for on-the-go locating

Auto-Calibrates Antenna


Sets system parameters

Adjusts to soil conditions

Time-Varying Gain &
Manual Configuration

Enhance image at desired depth

Multiple gain configuration filters

Color Palettes

Use pre-made or make your own

Alter gain (contrast)

Zoom to enhance view

Markout & Measure Data

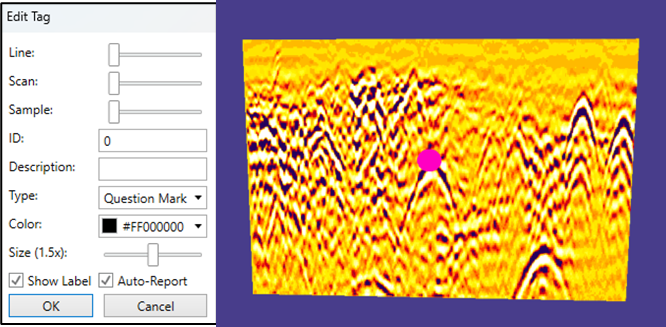

Mark & label points in radar data

Measure distance between points

Automatic Report Generation
& File Export

Exports radar data automatically

Choose from many file formats

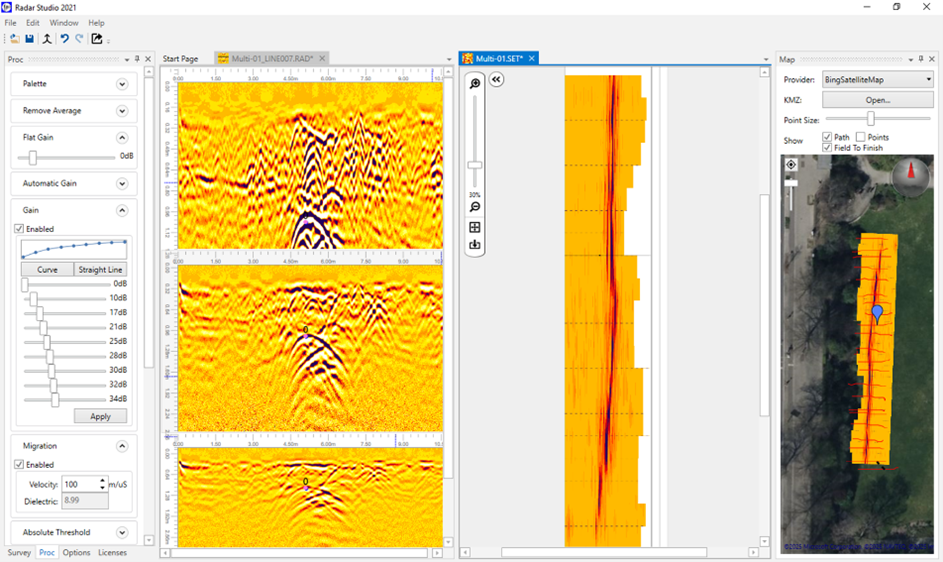

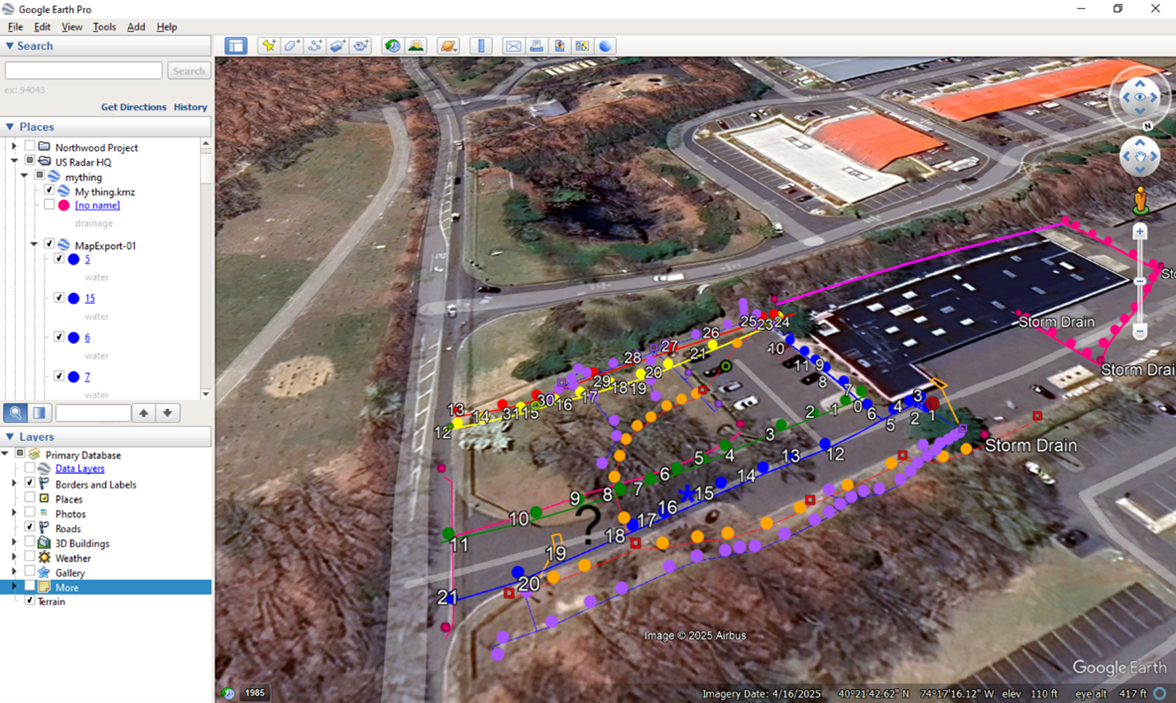

Optional Google Earth/Satellite
Imaging Software Integration

Overlay radar data on

satellite imaging

Create reliable utility maps

Annotate & map data

See data in relevant

environmental context

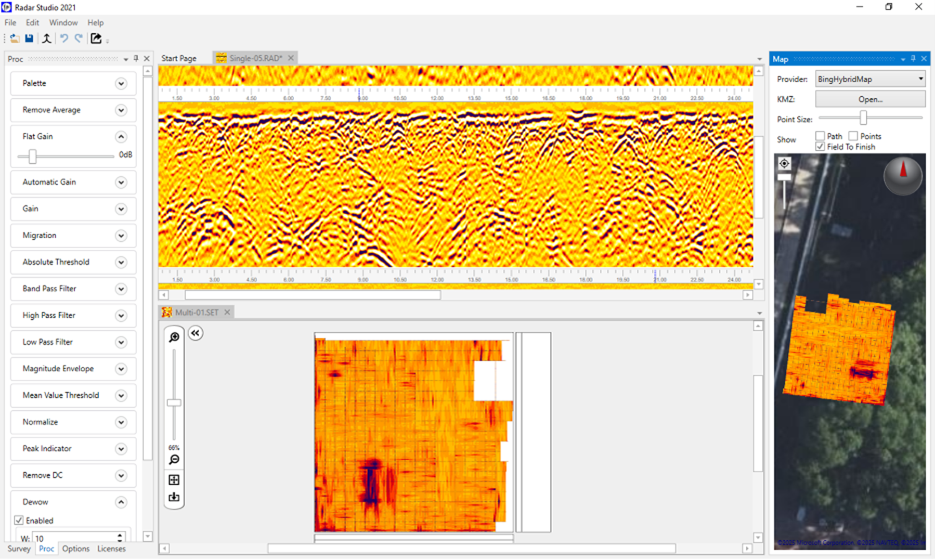

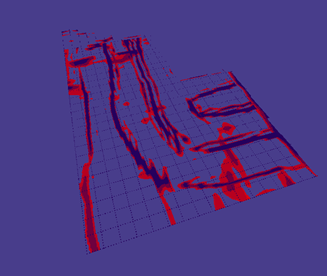

Generate depth slices overlays

Generate point clouds

Create isosurface models

Optional 3D Imaging & Modeling

Create as-built drawings

Use in the field or at the office

Export into many file formats

Optional Mapping Software

US Radar data can also be

Contact us or your US Radar

representative for more info.

processed in several third party

software packages.

Optional 3rd Party Software

Radar Controller Computer

Getac F110

  • Operating System: Windows 7 or 10 64-bit
  • Third-generation Intel® Core™ i5vPro™ Processor
  • Durability: MIL-STD-810G, 4-foot drop and all-weather IP65 dust and water resistant design
  • Display: 11.6 inch, HD daylight-readable, ten-point multi touch + digitizer
  • I/O Interface: Ethernet Port, DC Power Port, 1 USB 3.0 Port, HDMI Port, WiFi and Bluetooth
  • Expansion Options: MicroSD or second USB 2.0 port, RJ45 Ethernet, Dedicated GPS
  • Communications: Wi-Fi, Bluetooth® and optional 4G LTE or 3G Gobi™


  • Microsoft Windows

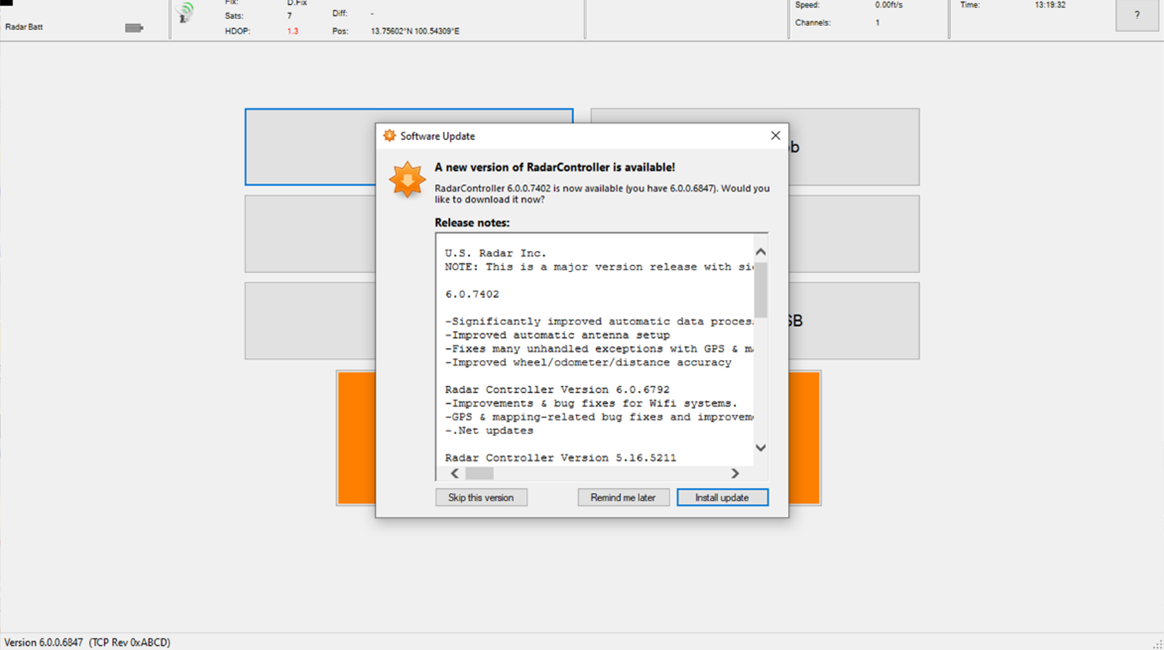

  • US Radar Control Software Including:
    • System Configuration
    • A Scan Display (Oscilloscope Mode)
    • B Scan Display (Cross Sectional View)
    • C Scan Display (3D) (Optional)
    • Integrated Map Display Panel with Real-Time Annotation and CAD and GIS Export
    • Real Time Signal Processing
    • Data Storage and Playback
    • Optional GPS Integration

System Scan Modes

  • Maximum typical logging scan rate of 390 scans per second
  • Trigger Modes: Free run, timed interval, shaft encoder, GPS, manual
  • Nominal Sampling Rate: 650,000,000 samples per second
  • Maximum Resolution: 100 Gigasamples per second
  • Hardware Time Varying Gain: 45dB
  • Software Time Varying Gain: 60dB
  • Software Flat Gain: 60dB

System Environmental Specifications

  • Temperature: -11 deg. To 50 deg. C
  • Moisture and dust resistance: IP 65

Radar Hardware Specifications

  • Total System Dynamic Range: >130 dB
  • Receiver Dynamic Range: >90 dB
  • Sampling Interval: 10 ps-6.4 ns
  • Time Range Adjustment Interval: 10 ps
  • Pulse Repetition Frequency: 0.1-4 MHz-adjustable
  • Samples per Trace: 2-8192, Adjustable
  • Effective Bandwidth (typ.): >4 GHz
  • Stacking: Automatic
  • Transmitter: Stepped Ultra Wideband Triple Frequency


  • Warranty: 2 Years Parts and Labor
  • Complimentary telephone and email technical support
