GPRover Utility Mapping System

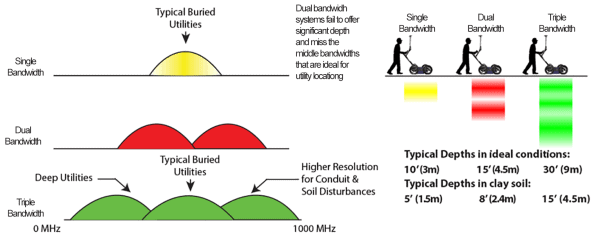

GPRover is built on the award-winning triple frequency range antennas introduced with our Quantum Imager. Triple bandwidth offers superior penetration depth and resolution compared to other imaging technologies. This is because other dual frequency range systems miss the higher resolution high frequencies and the deeper imaging low frequencies. With our signature triple frequency radar system, we close that gap.

Unlike many other multi-bandwidth locating technologies on the market, ones that only offer a zoomed-in copy of the first dataset as a “second” perspective, the US Radar triple frequency range antenna emits three separate signals and compiles three separate datasets that can be viewed simultaneously. This means that you can cross-compare your findings with greater accuracy and confidence that you’ve thoroughly done your job.

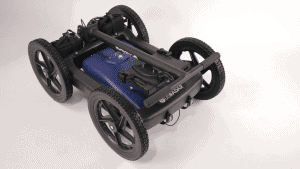

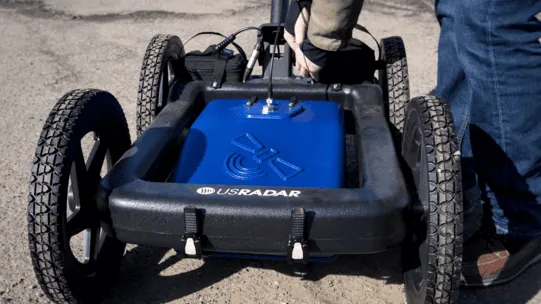

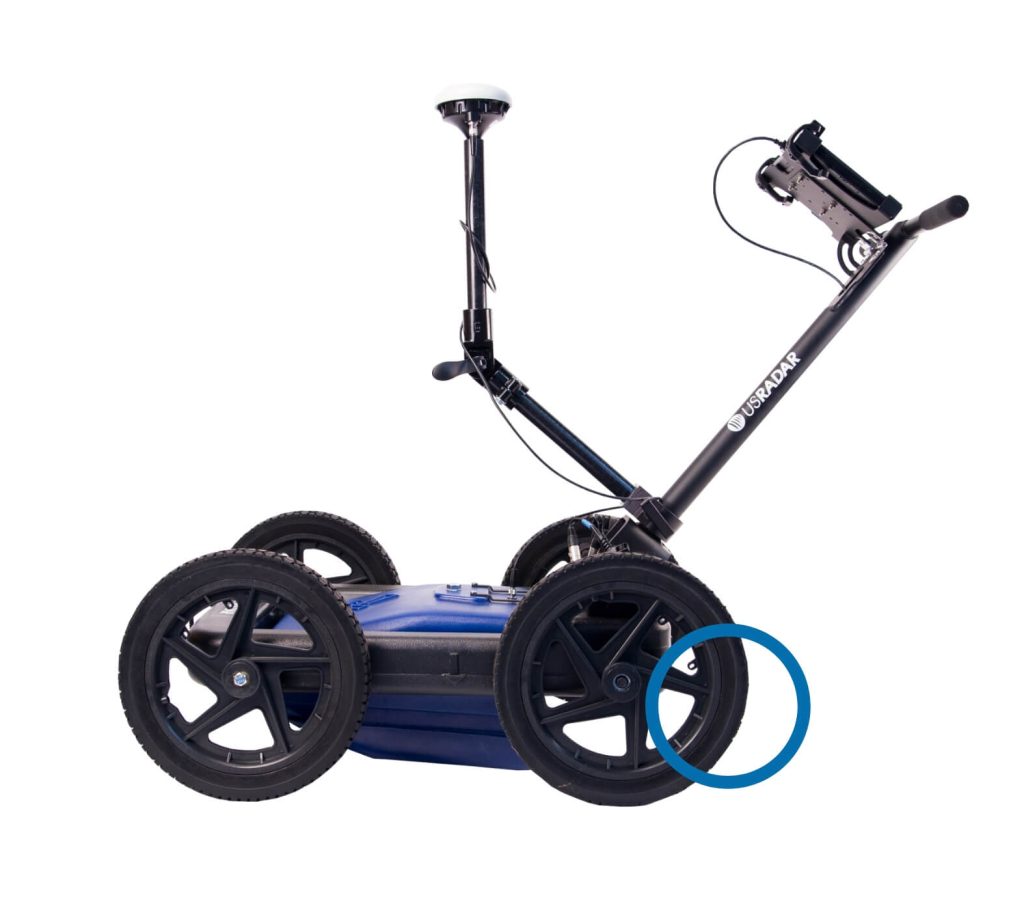

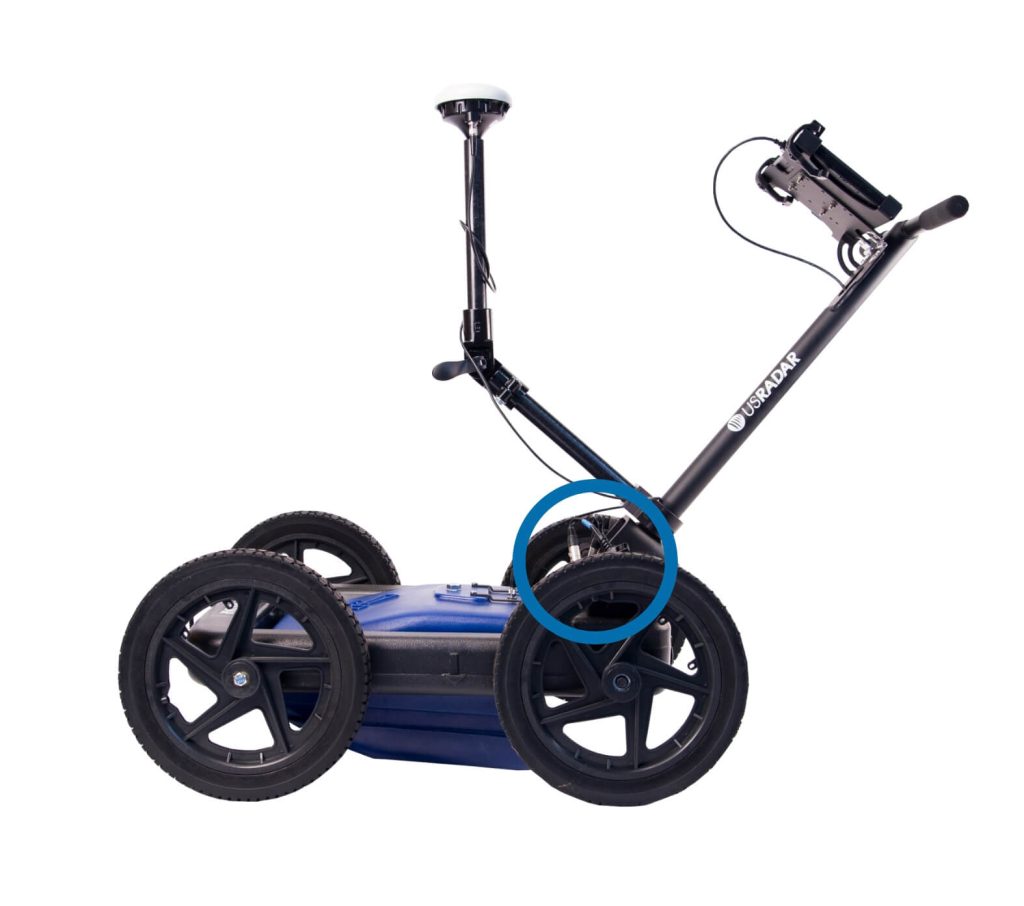

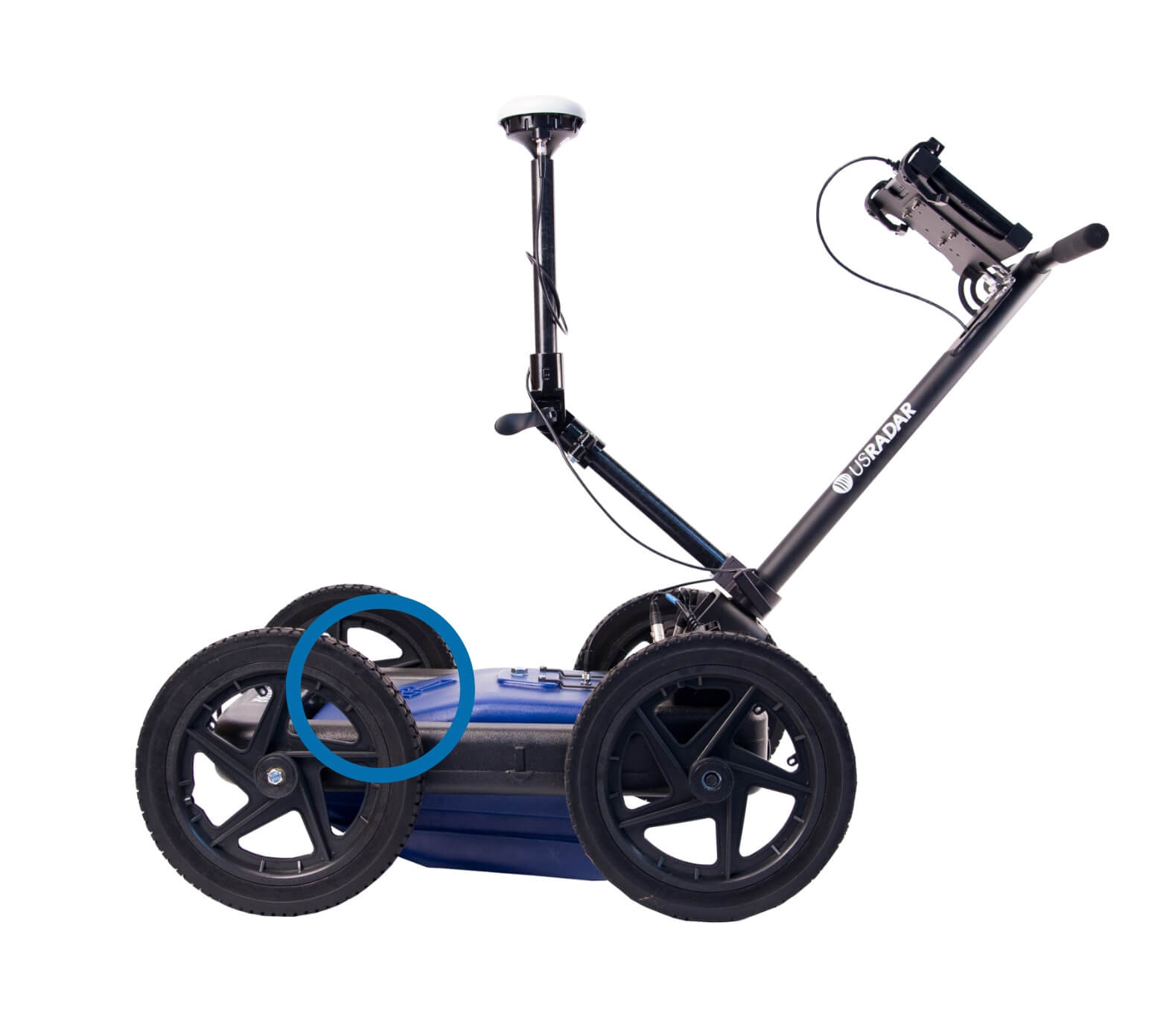

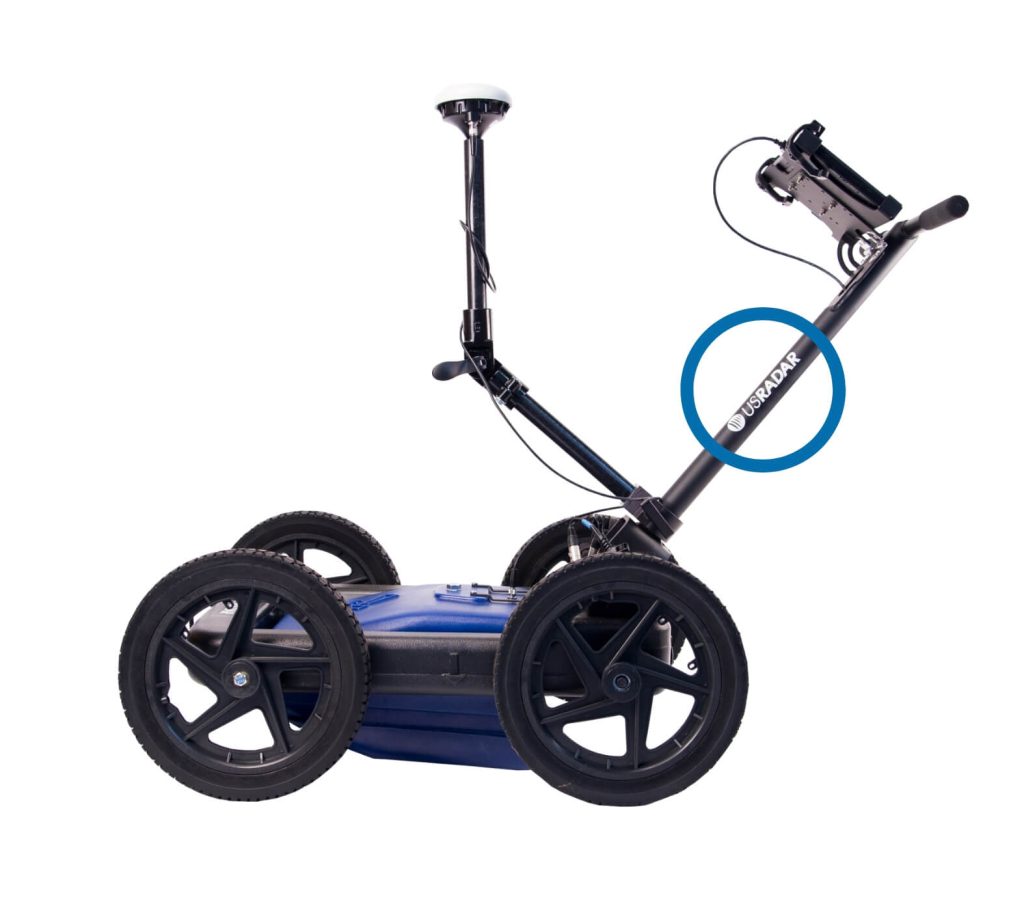

The GPRover features patented slope correction technology for slope and cross-slope of the GPR and GPS antennas to increase overall accuracy on uneven terrain. Paired with our durable cart design, the GPRover is practically all-terrain and suitable for most work environments.

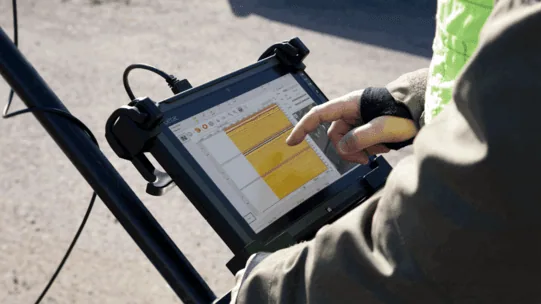

Radar Controller Computer

  • Operating System: Windows 7 or 10 64-bit
  • Third-generation Intel® Core™ i5vPro™ Processor
  • Durability: MIL-STD-810G, 4-foot drop and all-weather IP65 dust and water resistant design

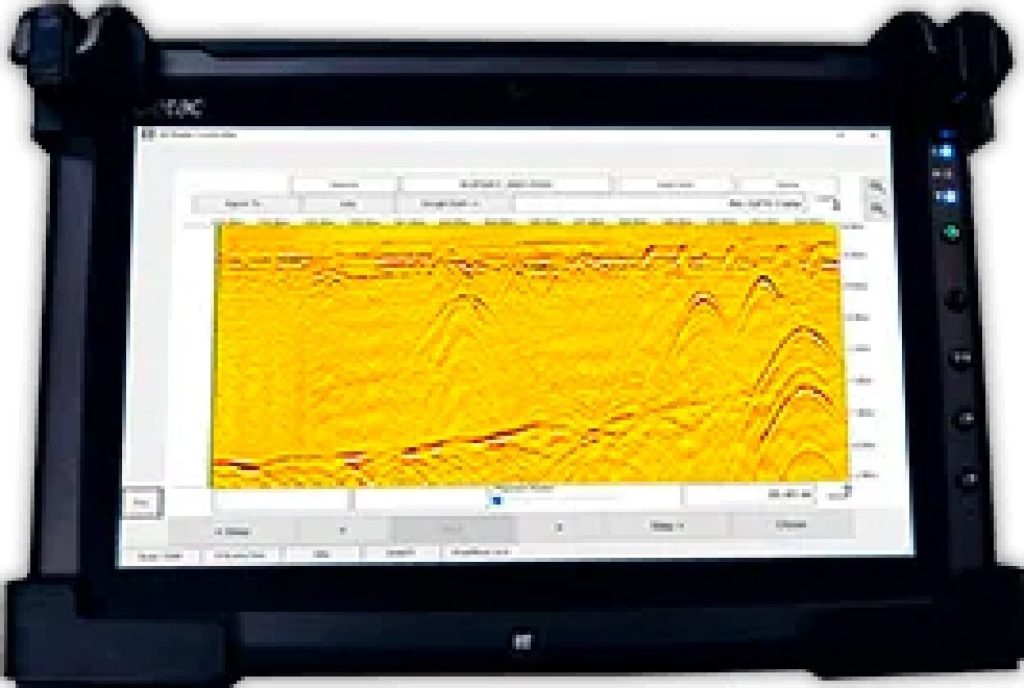

  • Display: 11.6 inch, HD daylight-readable, ten-point multi touch + digitizer
  • I/O Interface: Ethernet Port, DC Power Port, 1 USB 3.0 Port, HDMI Port, WiFi and Bluetooth
  • Expansion Options: MicroSD or second USB 2.0 port, RJ45 Ethernet, Dedicated GPS
  • Communications: Wi-Fi, Bluetooth® and optional 4G LTE or 3G Gobi™

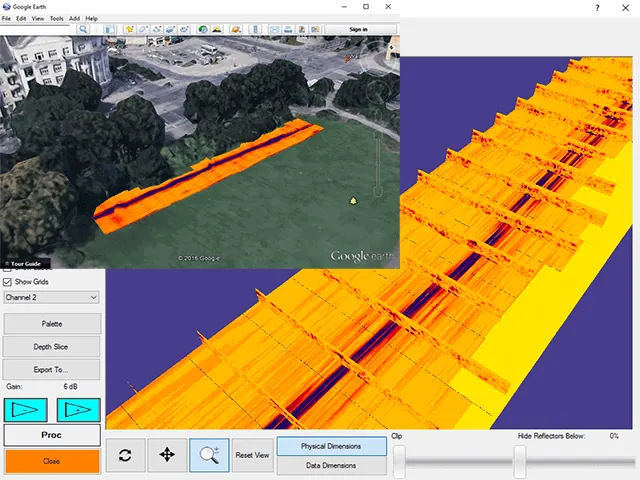

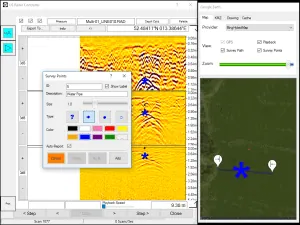

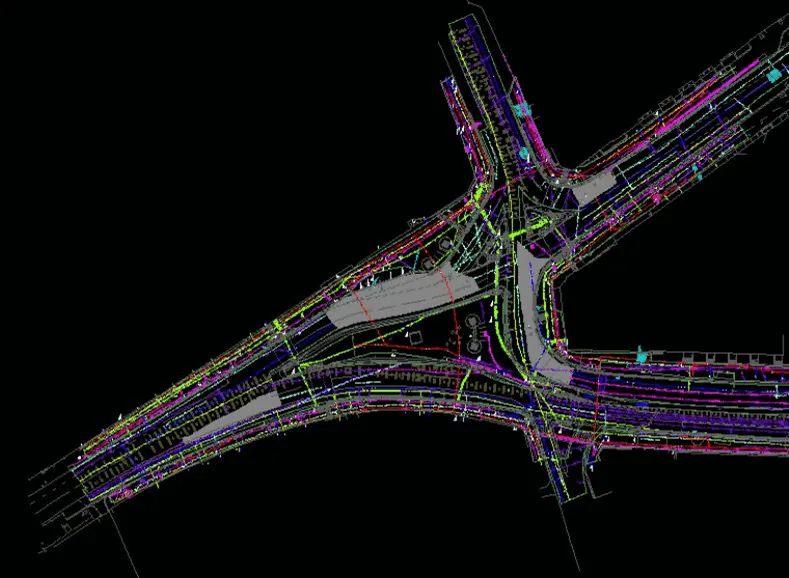

Software

  • Microsoft Windows
  • US Radar Control Software Including:
    • System Configuration
    • A Scan Display (Oscilloscope Mode)

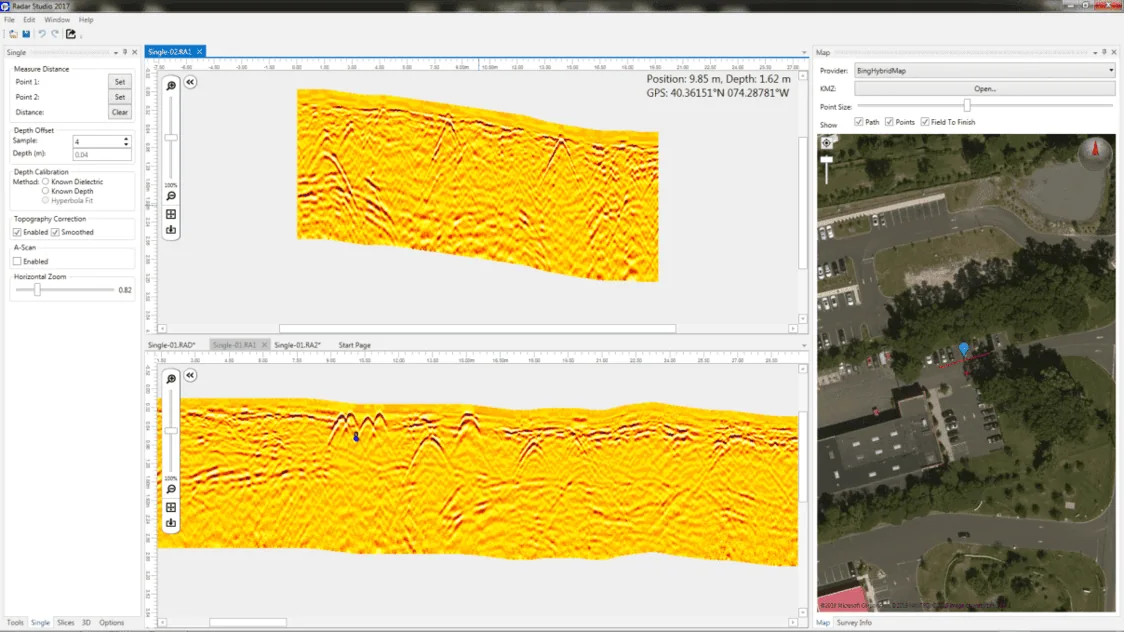

    • B Scan Display (Cross Sectional View)

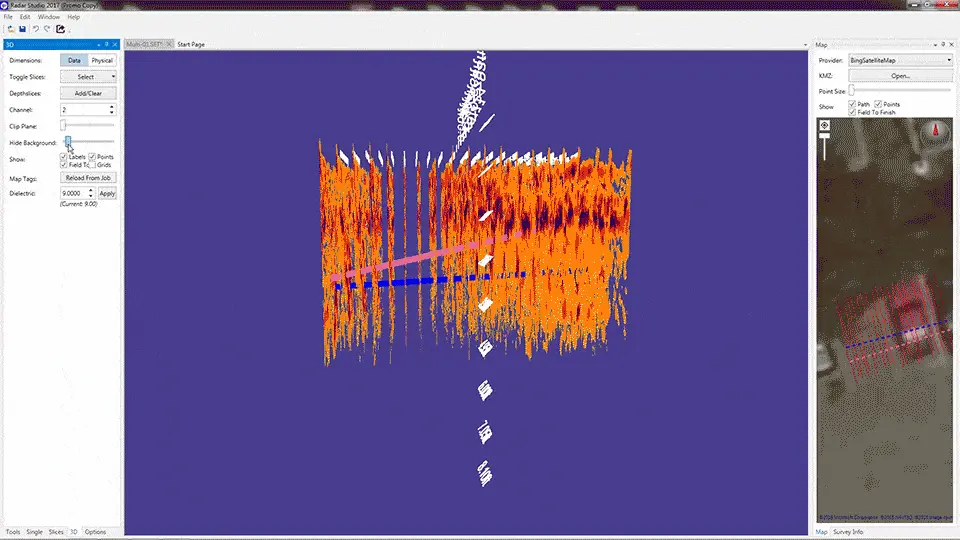

    • C Scan Display (3D) (Optional)
    • Real Time Signal Processing
    • Data Storage and Playback

System Scan Modes

  • Maximum typical logging scan rate of 390 traces per second
  • Trigger Modes: Free run, timed interval, shaft encoder, GPS, manual
  • Nominal Sampling Rate: 650,000,000 samples per second
  • Maximum Resolution: 100 Gigasamples per second
  • Hardware Time Varying Gain: 45dB
  • Software Time Varying Gain: 60dB
  • Software Flat Gain: 60dB

System Environmental Specifications

  • Temperature: -11 deg. To 50 deg. C
  • Moisture and dust resistance: IP 65

Radar Hardware Specifications

  • Total System Dynamic Range: >130 dB
  • Receiver Dynamic Range: >90 dB
  • Sampling Interval: 10 ps-6.4 ns
  • Time Range Adjustment Interval: 10 ps
  • Pulse Repetition Frequency: 0.1-4 MHz-adjustable
  • Samples per Trace: 2-8192, Adjustable
  • Effective Bandwidth (typ.): >4 GHz
  • Stacking: Automatic
  • Transmitter: Stepped Ultra Wideband Triple Frequency

Support

  • Warranty: 2 Years Parts and Labor
  • Complimentary telephone and email technical support
