100 Series Geophysical Scanner Ground Penetrating Radar System

100 Series Geophysical Scanner Ground Penetrating Radar System

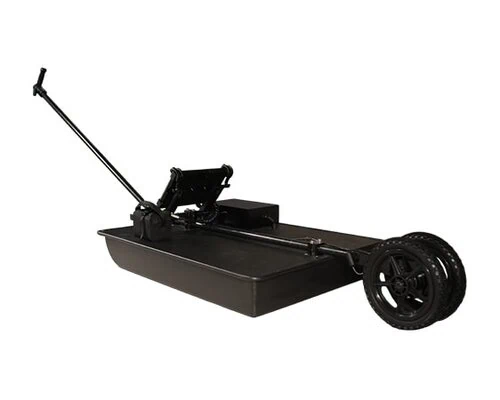

100series

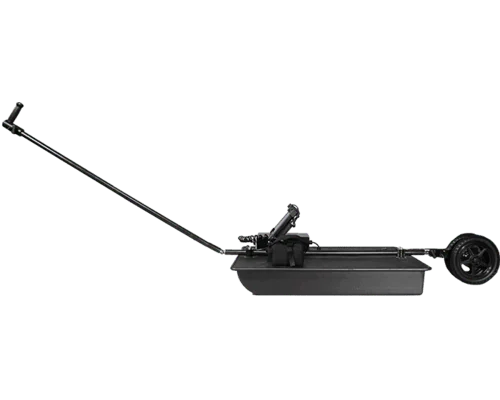

100seriesfinal

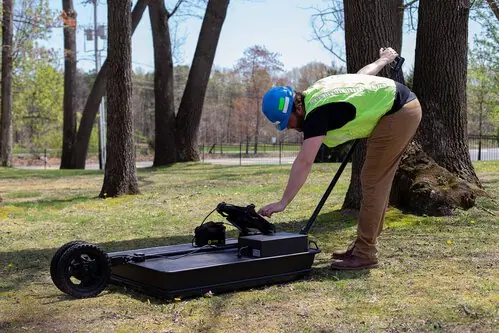

IMG_3904

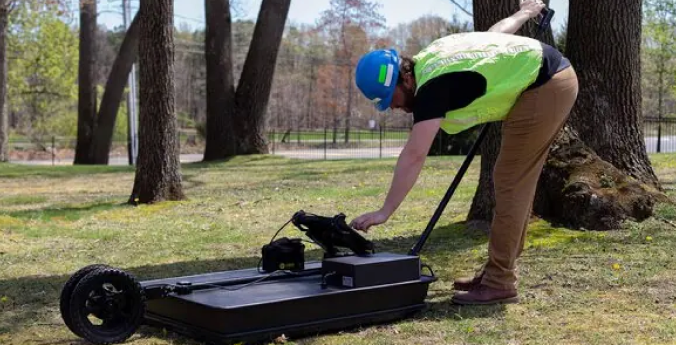

Our Most Powerful GPR System for Geophysical Scanner Survey

100 Series geophysical scanner systems offer the greatest realistic penetration that ground penetrating radar (GPR) can provide. It is used for locating deeper targets up to 100 ft. (30.48m). Typically, this system is most often used for locating tunnels and for geophysical analysis.

About the 100 Series

The 100 Series is one of our most versatile systems, as the tablet and software are interchangeable with our other systems. This means that you can easily convert a 100 Series into one of our many other configurations for more high-resolution scanning applications.

Think of your 100 Series system as more than a high-powered GPR device. When conducting a survey, you are doing more than seeing beneath the surface. You are compiling essential data that can be used to create an instant deliverable in the field – right from your tablet controller. This ensures everyone is on the same page and operating from a shared point-of-reference with greater efficiency, safety, and confidence.

  • Self-Calibrating Antenna
  • SmartGain
  • SmartStack
  • StreetSmart Onboard Processing
  • Autoconfiguration
  • Broadband GPR
  • Depth Calibration

Locating Deep/Large Utilities:

  • Non-metallic Pipes
  • Metallic Pipes

Environmental:

  • Tanks
  • Rubble Limits
  • Voids

Geophysics:

  • Strata
  • Bedrock

Strategic:

  • Deep Tunnels
  • Bunkers

Durable, Glare-Resistant Tablet Interface

  • Daylight readable, weatherproof Getac tablet interface
  • High performance CPU enables real-time data processing
  • Built-in 3D view capability
  • WiFi supported
  • USB, Ethernet, HDMI and Audio ports

Sloped Antenna

  • Easily overcomes obstacles and rough terrain
  • Powerful low-frequency 100 MHz antenna for
  • unmatched depth penetration

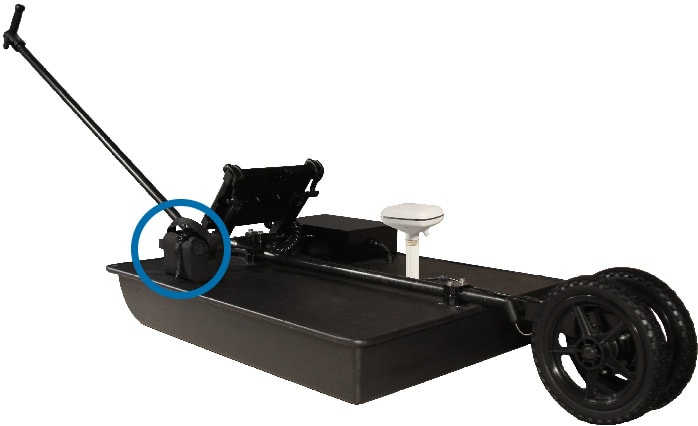

Battery Packs

  • 2 battery packs included with each system
  • Total runtime of 10 hours
  • Typical lifetime of several years

Military Grade Connectors

  • Never worry about loose connections
  • Connectors hold up across a variety
  • of weather conditions

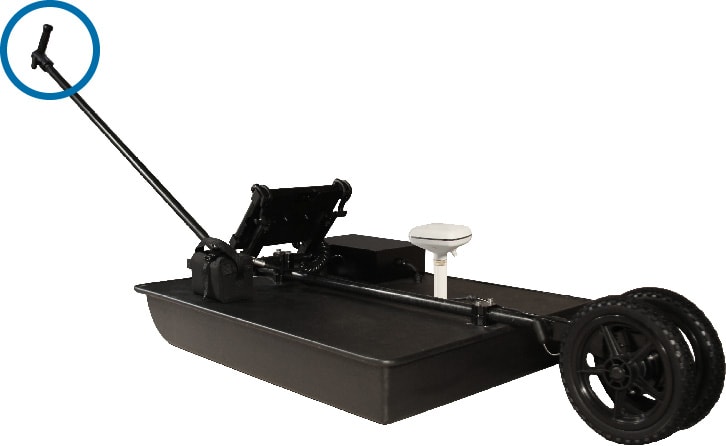

Aluminum Handle

  • Hybrid composite/aluminum pull handle
  • Designed to precisely avoid GPS interference

Optional GPS Integration

  • Optional GPS pole mount
  • Enables GPS to be centered over antenna
  • Integrates with most high-end GIS & RTK units
  • Optional integration with Google Earth

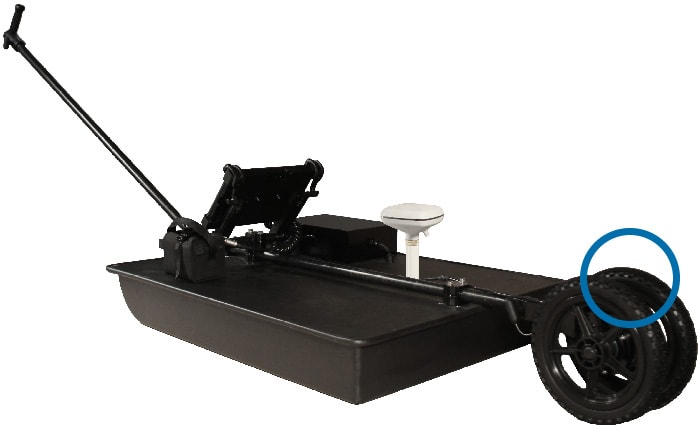

Airless, Solid Tires

  • Can not go flat
  • Require zero maintenance
Our GPR Software is easy to use out of the box and perfect for on-the-go locators. Each time you create a file, our software automatically calibrates antenna and processing settings to the materials being scanned.
Our GPR Software is easy to use out of the box and perfect for on-the-go locators. Each time you create a file, our software automatically calibrates antenna and processing settings to the materials being scanned.

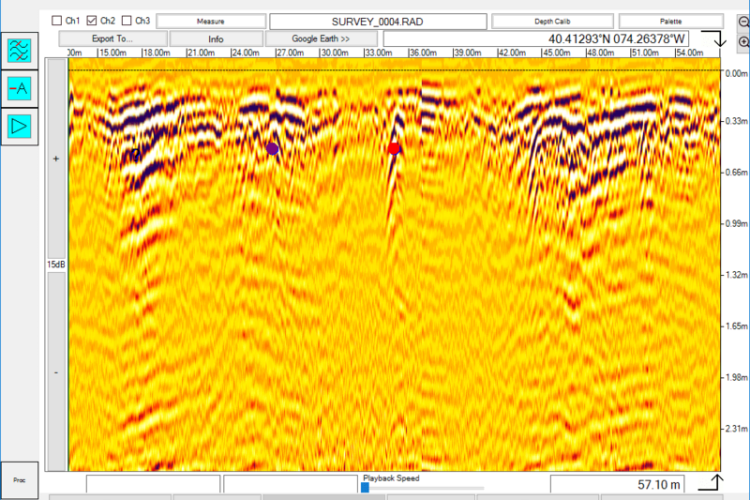

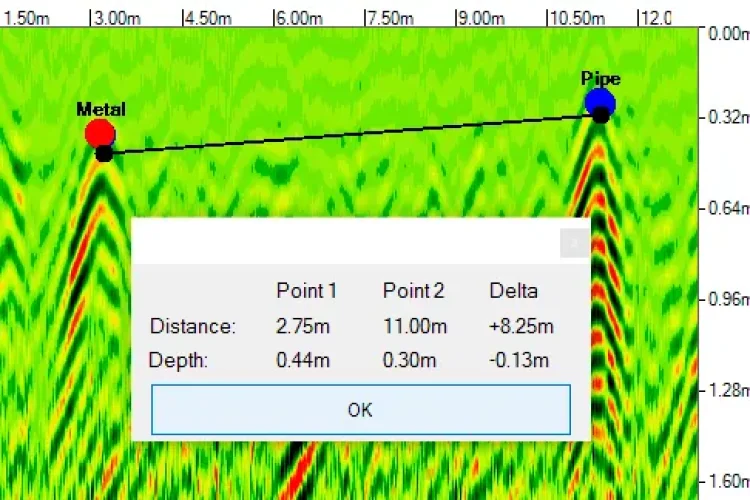

Mark and label points in radar data to describe what you’ve found. Measure the distance between two points to create even more context.
Mark and label points in radar data to describe what you’ve found. Measure the distance between two points to create even more context.

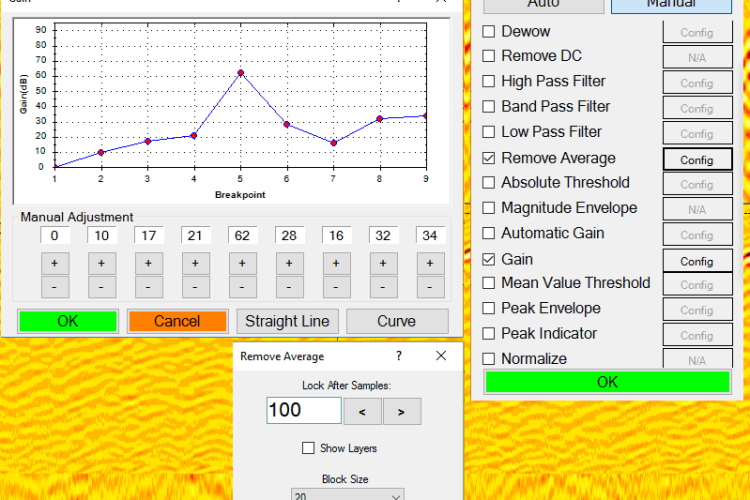

Enhance image at a particular depth of interest using time-varying gain. Apply various filters to manually configure gain settings.
Enhance image at a particular depth of interest using time-varying gain. Apply various filters to manually configure gain settings.

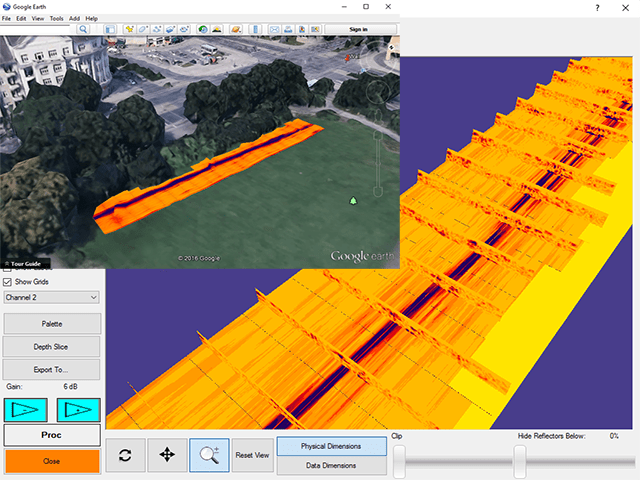

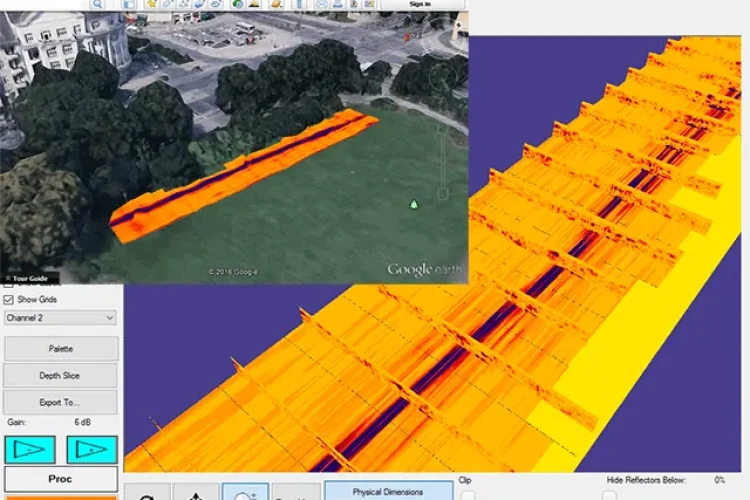

Overlay radar data on satellite imaging to create reliable utility maps and see data within relevant environmental context. Add descriptions to specific coordinates to annotate radar and map data.
Overlay radar data on satellite imaging to create reliable utility maps and see data within relevant environmental context. Add descriptions to specific coordinates to annotate radar and map data.

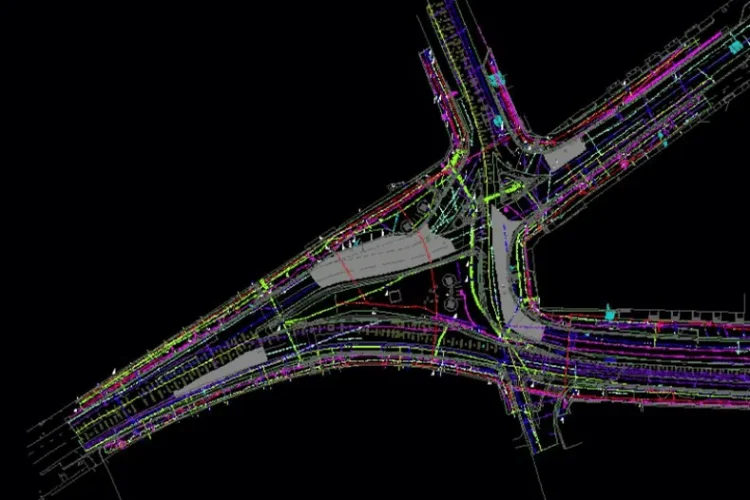

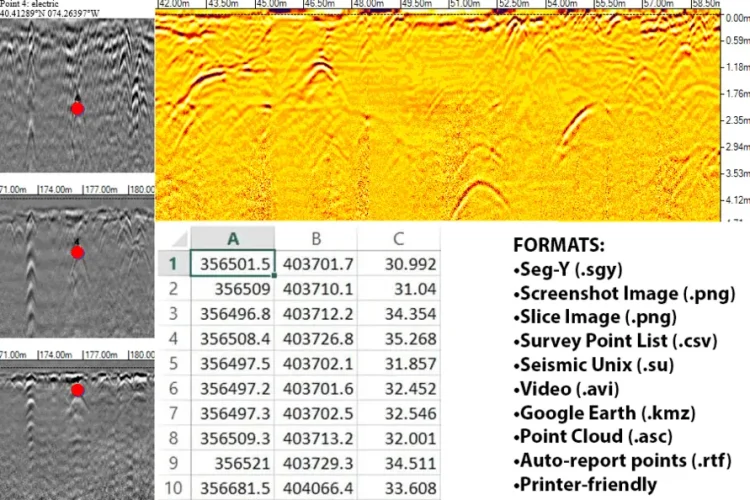

Can be used to create as-built drawings in the field or in the office. Exports into many formats including .kmz (Google Earth), .dxf (AutoCAD), and .shp (ArcGIS).
Can be used to create as-built drawings in the field or in the office. Exports into many formats including .kmz (Google Earth), .dxf (AutoCAD), and .shp (ArcGIS).

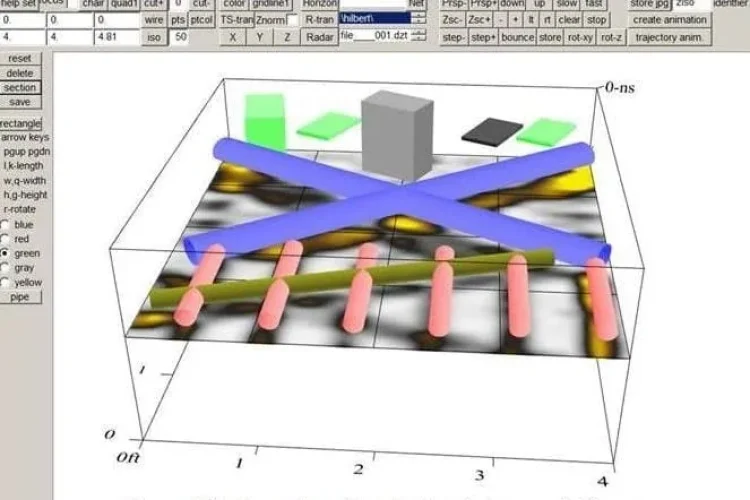

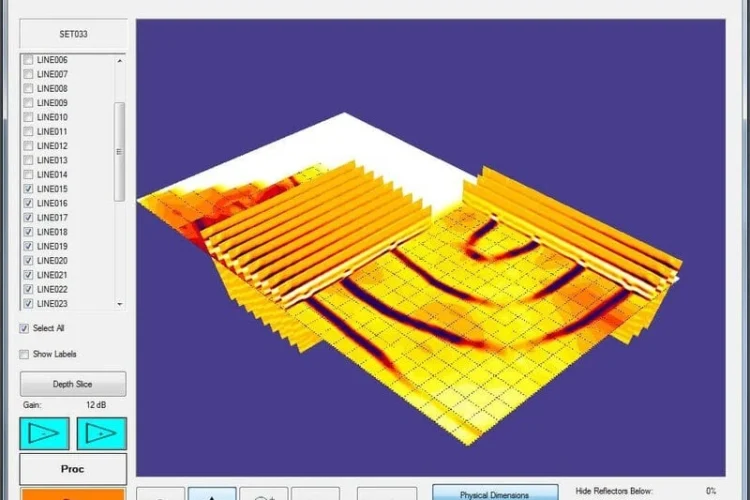

Generate depth slice overlays, isosurface models
Generate depth slice overlays, isosurface models
Our data can also be processed in several third party software packages to best fit your specific needs.
Our data can also be processed in several third party software packages to best fit your specific needs.

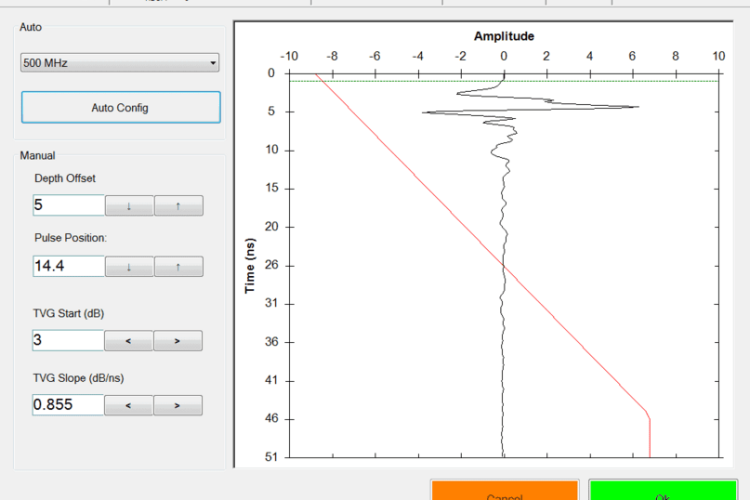

US Radar’s software automatically sets antenna system parameters to adjust to soil conditions.
US Radar’s software automatically sets antenna system parameters to adjust to soil conditions.
Enhance image at a particular depth of interest using time-varying gain. Apply various filters to manually configure gain settings.
Enhance image at a particular depth of interest using time-varying gain. Apply various filters to manually configure gain settings.

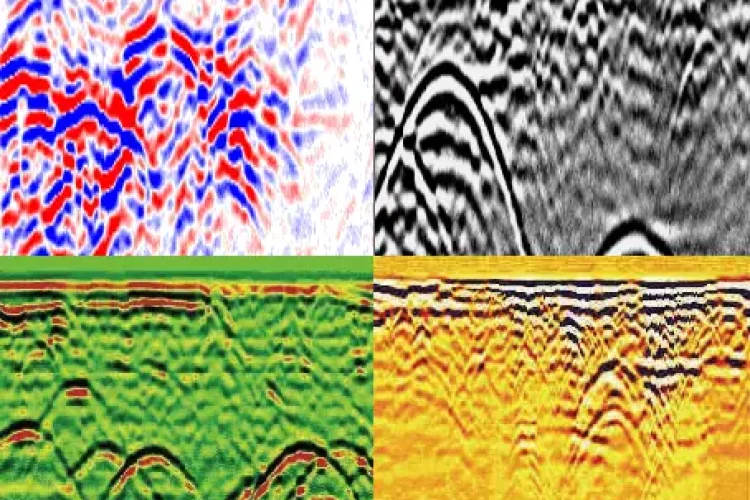

Choose from an array of helpful color palettes, alter gain (contrast) and zoom to view the data in different ways and gain important insights!
Choose from an array of helpful color palettes, alter gain (contrast) and zoom to view the data in different ways and gain important insights!

Radar Controller Computer

Getac F110

  • Operating System: Windows 7 or 10 64-bit
  • Third-generation Intel® Core™ i5vPro™ Processor
  • Durability: MIL-STD-810G, 4-foot drop and all-weather IP65 dust and water resistant design
  • Display: 11.6 inch, HD daylight-readable, ten-point multi touch + digitizer
  • I/O Interface: Ethernet Port, DC Power Port, 1 USB 3.0 Port, HDMI Port, WiFi and Bluetooth
  • Expansion Options: MicroSD or second USB 2.0 port, RJ45 Ethernet, Dedicated GPS
  • Communications: Wi-Fi, Bluetooth® and optional 4G LTE or 3G Gobi™

Software

  • Microsoft Windows
  • US Radar Control Software Including:
    • System Configuration
    • A Scan Display (Oscilloscope Mode)
    • B Scan Display (Cross Sectional View)
    • C Scan Display (3D) (Optional)
    • Real Time Signal Processing
    • Data Storage and Playback

System Scan Modes

  • Maximum typical logging scan rate of 390 traces per second
  • Trigger Modes: Free run, timed interval, shaft encoder, GPS, manual
  • Nominal Sampling Rate: 650,000,000 samples per second
  • Maximum Resolution: 100 Gigasamples per second
  • Hardware Time Varying Gain: 45dB
  • Software Time Varying Gain: 60dB
  • Software Flat Gain: 60dB

System Environmental Specifications

  • Temperature: -11 deg. To 50 deg. C
  • Moisture and dust resistance: IP 65

Radar Hardware Specifications

  • Total System Dynamic Range: >130 dB
  • Receiver Dynamic Range: >90 dB
  • Sampling Interval: 10 ps-6.4 ns
  • Time Range Adjustment Interval: 10 ps
  • Pulse Repetition Frequency: 0.1-4 MHz-adjustable
  • Samples per Trace: 2-8192, Adjustable
  • Effective Bandwidth (typ.): >4 GHz
  • Stacking: Automatic
  • Transmitter: Stepped Ultra Wideband Triple Frequency

Support

  • Warranty: 2 Years Parts and Labor
  • Complimentary telephone and email technical support

Learn More About the 100 Series Today

Want to learn more about how the 100 Series geophysical scanner or one of our other systems could help you on your next project? Contact us today to speak with one of our GPR experts who will be happy to help you.
